Electric Grain Mill hawos Pegasus
Pegasus offers hawos best mill technology for instore use and consumers with heavy milling needs. A real workhorse, it is designed and built for easy commercial use.
The Pegasus model from hawos is the ideal grain mill for health and natural food stores, hotel kitchens, cafeterias and marketing companies - any operation, in fact, where large amounts of freshly ground grain and flour are required. Fast and quiet (only 72 decibels), Pegasus features an extra-large 2.5-kilogram (5.5 lbs.) hopper.
Specially designed for self-service in retail areas, Pegasus is simple to operate: Choose how coarse or fine you want your grain, pour it in to the hopper, and then set or fasten your bag under the discharge outlet. One flip of the switch and Pegasus does the rest, delivering extremely fine grain and fluffy flour.
Reliably, too, because Pegasus mills are solidly built to stand up to the heavy demands of commercial customers, with a unique design that makes for practical everyday use. The hopper and grain discharge outlets extend well out from the base of the machine, leaving space enough for you and your customers to directly fill everything from a small bag up to a grain sack.
No Stone Contact - No Problems
The grinding stones in Pegasus cannot overheat because they never come in contact with each other - even when the machine is running empty. And cleaning the grain chamber is fast and easy, since the required Allen key is attached inside the mill.
Technical Specifications :
• Housing Beech ply
• Grinding capacity for (wheat) -fine approx. 14 oz/min (400 g/min ) -course approx. 1.55 lbs/min (750 g/min)
• Hopper capacity (wheat) approx. 5.5 lbs (2.5 kg)
• Grindstone ø (corundum ceramic stones) 4.9 inches (125 mm)
• Weight approx. 77 lbs (35 kg)
• Motor output mains Voltage 380-400 V, optional 220-240 V or 110 V
• High allowance for bowls 6.69 inches (17 cm)
• Dimensions (W x D x H) 10.63 x 25.98 x 25.59 inches (270 x 660 x 650 mm)
• Surface-finish Linseed oil varnish
If you need gluten-free mill, please tell us directly after place your order
Optional accessories: Pegasus Hopper extender (+3.97 lbs (1.8 kg)): $ 59,- Pegasus subframe: $ 125,- Mountingboard for Pegasus: $ 40,-
|
|
No Stone Contact - No Problems
The grinding stones in Pegasus cannot overheat because they never come in contact with each other - even when the machine is running empty. And cleaning the grain chamber is fast and easy, since the required Allen key is attached inside the mill.
|
PERFORMANCE:
High Performance for Commercial Use
hawos Pegasus is available in 110-volt to suit your specific needs, enough for non-stop, heavy-duty use.
Our Milling Technology

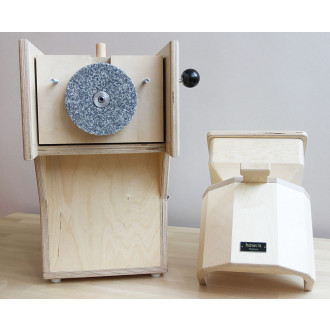

All hawos mills are built to the same high standards, and employ extremely hard milling stones to grind exceedingly fine. Extra-large corundum ceramic stones, with a 125-millimeter (4.9-inch) diameter, are set on a highly elastic bedding: The result is extremely quiet operation, with adjustable settings that give precisely the desired fineness to your grain or flour.
Motor
A robust industrial motor and switch, along with top-quality electrical parts, assure high efficiency and security. And our motors generate little heat, even during milling
.
Milling Output
Pegasus mills 400 grams (14 ounces) per minute at the fine setting, guaranteeing short waiting times even at your busiest periods. At the coarsest setting, Pegasus delivers up to 700 grams (1.55 lbs.) of milled grain per minute.
It's Quiet
The patented millwork bedding in Pegasus means extremely low running noise - just 72 decibels.
CONSTRUCTION:
Clever Mill Construction

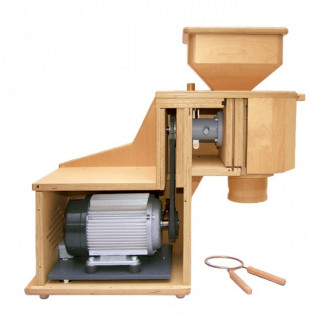

By employing a drive belt, Pegasus allows the millwork and
the motor to be housed separately, and the milling stones are set vertically on the mill shaft so that no brushes or leather strips are necessary to extrude the ground meal or flour. Because the heavy motor is housed below, with the millwork above, the grain is not exposed to motor heat. The milling stones (not visible in picture) 'stand' at the very front of the Pegasus, directly above the discharge outlet.
A Hopper to Hold All You Need
Pegasus's large hopper holds a full 2.5 kilograms (5.5 lbs.) of grain and can be removed at any time - even when full, an especially handy feature when you need to change the type of grain being milled. For especially big loads, one or more extenders can be attached; each adds 1.8 kilograms (4 lbs.) of hopper capacity.
HOUSING:
A Solid Beech multiplex Housing
A machine built for heavy commercial use needs a tough,
durable housing. We use beech ply, the ideal material for wooden
appliances with long life expectancy - like hawos Pegasus.

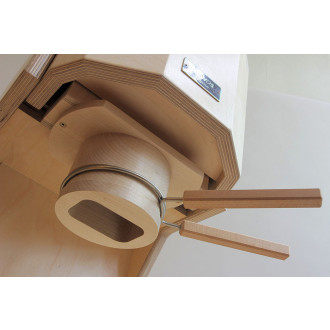

Our Clasp Keeps Your Store Clean
With the special clasp feature on hawos Pegasus, the bag for the
milled grain or flour completely encloses the grain discharge outlet,
avoiding wastage and helping keep the area around Pegasus tidy.
A squeeze loosens the clasp to allow easy fastening or removal of
the bag. The discharge outlet has been made extra large to avoid
any accumulation of loose grain on the rims.
Bag On and Away You Go
Standard, stable paper bags are ideal for Pegasus. We recommend bags with twice the capacity of the unmilled grain, since fluffy Pegasus-milled grain gives more volume.
Fully Tested
he performance of every Pegasus commercial mill is tested
visually, acoustically and technically. When we make our final
adjustments we run wheat through each mill to ensure hawos
90% milling efficiency standard; the DIN standard 10765 requires
only 80% (fine).
In other words, at least 90% percent (very fine) of the grain milled
in Pegasus must pass through a laboratory sieve with
0.3-millimeter (0.01-inch) mesh before we ship the mill to you.
Proven Quality
After extensive testing, hawos Pegasus has been given the
CE quality designation. A Pegasus mill comes with a two-year guarantee.
ACCESSORIES:
Pegasus hopper extender |
The Pegasus subframe |
Mounting Board |
|
|
|
Capacity |
1.8 kg
(4 Ibs.)
|
Weight |
0.6 kg
(1.3 Ibs.)
|
Dimensions (H x W x L) |
millimeters |
70 x 215 x 215 |
inches |
2.7 x 8.5 x 8.5 |
Wood type |
Birch ply |
Finish |
Water-based varnish |
|
Height |
33 cm
(13 inches)
|
Wood type |
Beech |
Finish |
Oiled |
To support large bags or sacks, a customized, adjustable bottom board is available.
|
When there is not enough counter space available for Pegasus, it can be mounted in a projecting position with the use of our customized mounting board.
|
hawos. Strong Mills - Fine Flour ...
